Cable Glands Accessories

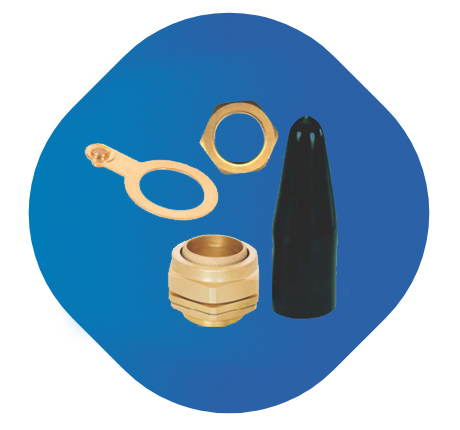

Cable Gland Kit

GLANDS MANUFACTURED TO BS-6121 : PT.1 : 1989 FOR USE WITH PVC, SWA, PVC 600/10000V CABLES TO BS 6346 : 1989

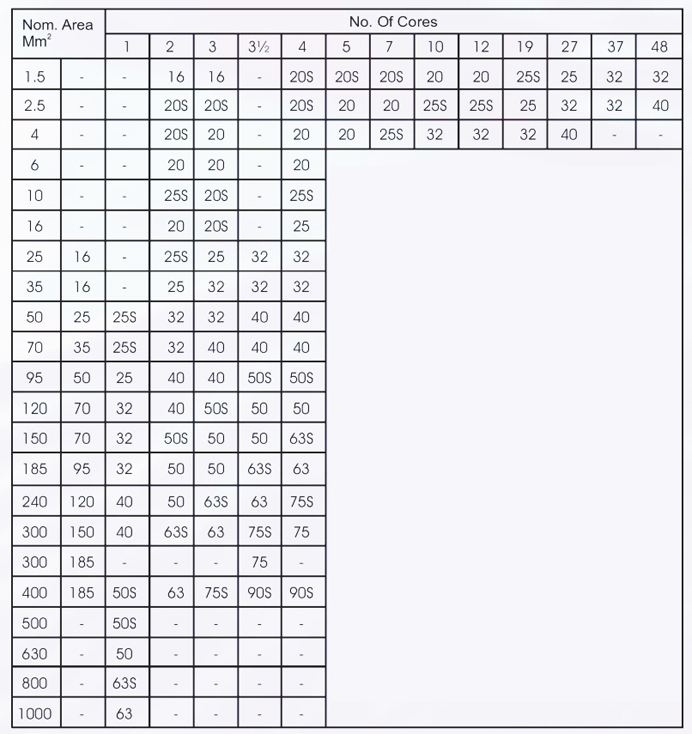

NOTE : THIS CHART IS FOR GUIDANCE ONLY - ACTUAL CABLE DIMENSIONS SHOULD BE CONSIDERED BEFORE MAKING FINAL SELECTION AS THESE MAY VARY DUE TO THE MANUFACTURING TOLERANCES PERMITTED IN BS 6346 : 1989

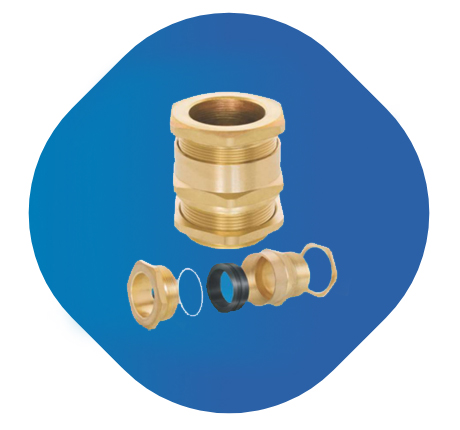

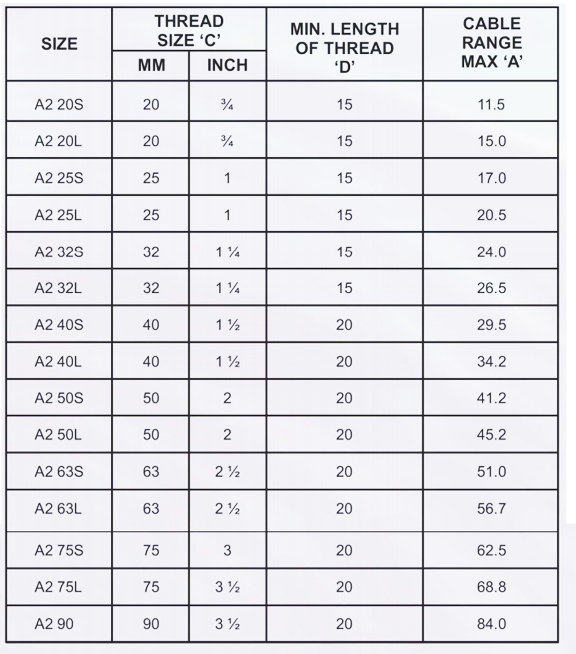

Cable Glands - Type A2

STANDARD : BS 6121, PART 1, 1989
MECHANICAL : IMPACT RESISTANT
SIZE : A2 20S - 75L
MATERIAL : BRASS / ALUMINIUM
FINISH : MATT / NICKLE
GASKET : NEOPRENE
SHROUDS : PVC /LSF
KITS : A2 GLAND, SHROUDS, LOCKNUT

APPLICATION :
IN OUTDOOR OR INDOOR WITH UNARMOURED LEAD SHEATHED UNARMOURED OR BRAIDED CABLE.

FUNCTION :
A2 GLANDS OFFER A DUSTPROOF SEAL ON TO THE OUTER SHEATH OF AN UNARMOURED, OR BRAIDED CABLE

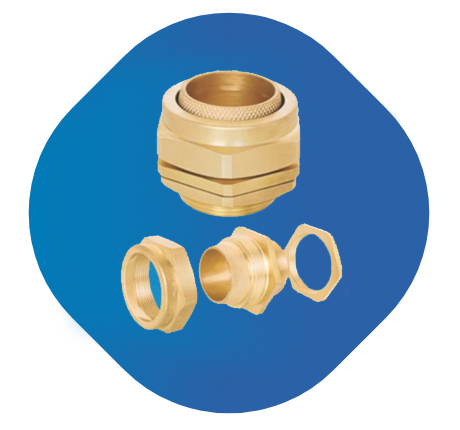

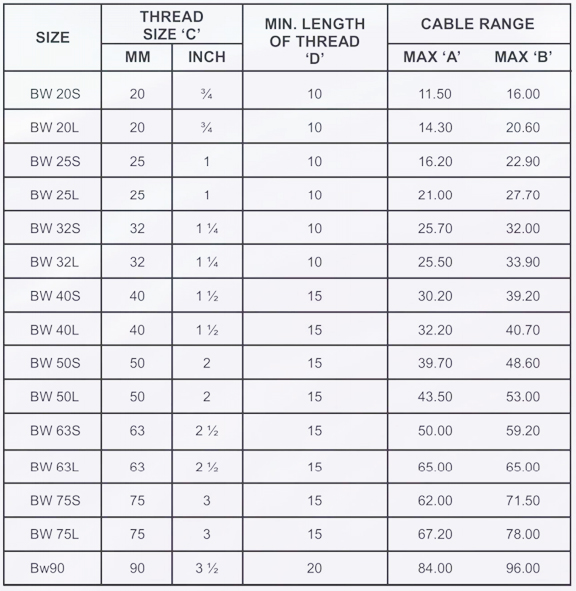

Cable Glands - Type BW

STANDARD : BS 6121, PART 1, 1989.
MECHANICAL : PROVIDES RETENTION OF ARMOUR OR BRAID
SIZE : BW 208 - 75L
MATERIAL : BRASS / ALUMINIUM
FINISH : MATT / NICKLE
SHROUDS : PVC / LSF
KITS : BW GLAND, PVC SHROUD LOCKNUT AND EARTH TAG.

APPLICATION :
IN INDOOR AREAS WITH ARMOURED OR BRAIDED CABLE, INCLUDING LEAD SHEATED. FUNCTION :
ALL GLANDS OFFER CLAMPING OF THE ARMOUR OR BRAIDED

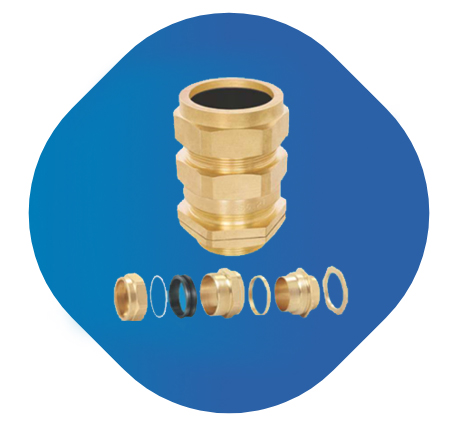

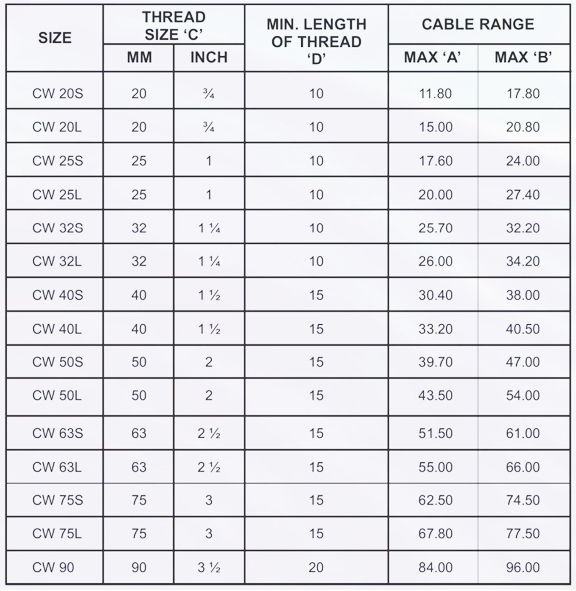

Cable Glands - Type CW

STANDARD : BS 6121, PART 1, 1989.
MECHANICAL : PROVIDES RETENTION OF ARMOUR OR BRAID
SIZE : CW 208 - 75L
MATERIAL : BRASS / ALUMINIUM
FINISH : MATT / NICKLE
GASKET : NEOPRENE
SHROUDS : PVC / LSF
KITS : CW GLAND, SHROUD

APPLICATION :
IN OUTDOOR AREAS WITH ARMOURED OR BRAIDED CABLE, INCLUDING LEAD SHEATED.
FUNCTION :
ALL GLANDS OFFER CLAMPING OF THE ARMOUR OR BRAID AND A WEATHER SEAL TO THE OUTER SHEATH OF THECABLE.
